IIS application pool identity and NTFS permissions: least privilege that works

Verified 2026-10-292 min read

Use ApplicationPoolIdentity, grant only the NTFS rights the site needs, and tune app-pool settings without breaking the app or widening access.

Tested onStandard / Datacenter · Build 26100.33650 · x64

Build: 26100.33650
Edition: Standard / Datacenter
Architecture: x64
Support: Documentation (E1)
Evidence: E1Official documentation
Verified: 2026-10-29
Test machine: IIS Manager UI reference: VM 361 Windows 11 26H2; app pool labpool; Server 2025 cmdlets E1
Page type: Task

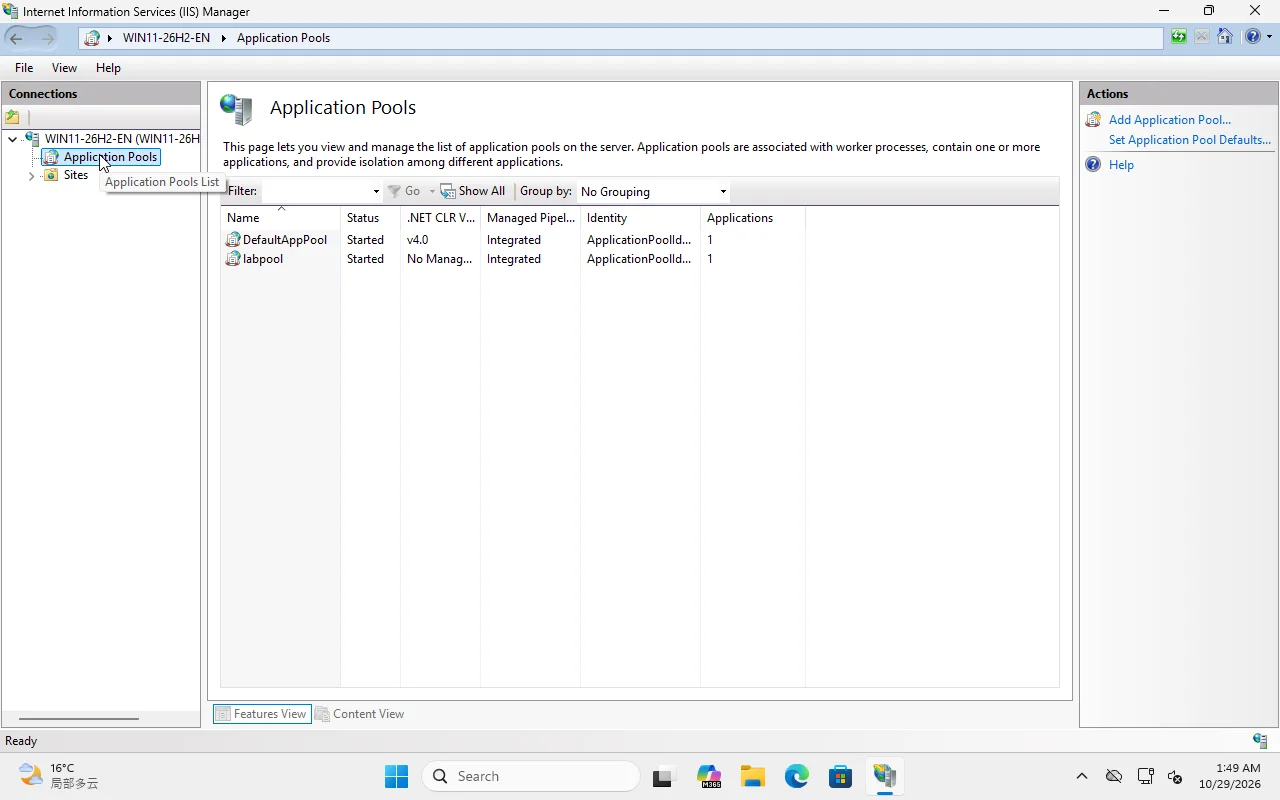

IIS Manager Application Pools showing DefaultAppPool and a labpool with ApplicationPoolIdentity. — VM 361 app pools: DefaultAppPool and labpool. Both use ApplicationPoolIdentity; the lab site uses labpool. Windows 11 UI reference; Server 2025 steps E1.

The short answer

By default, an IIS app pool runs as a virtual account named IIS AppPool\<PoolName> (ApplicationPoolIdentity). You do not create a password; Windows creates the SID when the pool starts.

Grant that identity only what the site needs:

read/execute on the site root;
modify on one upload/cache directory if the app writes files;
nothing on C:\, C:\Windows or another site’s folder.

Do not “fix” a 401.3 by adding Everyone or by putting the app pool on a domain admin.

Identity choices

Identity	Use	Risk
ApplicationPoolIdentity	Default; per-pool virtual account	Low; grant NTFS explicitly
NetworkService	Legacy/domain machine account	Broader network identity
LocalSystem	Never for a web app	Full local control
Custom local user	App needs a fixed profile/ACL	Password/rotation burden
gMSA	Domain app, managed password	Requires AD design

For a standalone server, ApplicationPoolIdentity is the right default.

Create the pool and grant NTFS

Import-Module WebAdministration
New-WebAppPool -Name 'labpool'
Set-ItemProperty IIS:\AppPools\labpool -Name managedRuntimeVersion -Value ''

Grant read/execute:

icacls C:\inetpub\lab /grant "IIS AppPool\labpool:(OI)(CI)RX"

Grant write only where needed:

New-Item -ItemType Directory -Force C:\inetpub\lab\uploads | Out-Null
icacls C:\inetpub\lab\uploads /grant "IIS AppPool\labpool:(OI)(CI)M"

(OI)(CI) applies to files and folders; RX is read/execute; M is modify. Do not grant F (full) unless the app genuinely needs to change ACLs/ownership.

Verify

Get-IISAppPool | Select-Object Name, State, ProcessModel
icacls C:\inetpub\lab
Invoke-WebRequest http://localhost:8080/ -UseBasicParsing | Select-Object StatusCode

If you get 401.3, the identity cannot read the file. Check the effective ACL, not just the folder’s Sharing tab. If you get 500.19, it is a configuration/permissions error, often a parent web.config or a missing module.

App-pool settings that matter

Setting	Default	When to change
.NET CLR version	v4.0	Set No Managed Code for static/Node/Python
Managed pipeline	Integrated	Classic only for legacy apps
Start mode	OnDemand	`AlwaysRunning` for latency-sensitive apps
Idle timeout	20 min	Disable only if the app must stay warm
Regular time interval	1740 min	Recycle off-peak; watch memory
32-bit applications	False	True only for 32-bit DLLs
Load user profile	False	True for apps that need a profile (e.g. some crypto)

Do not disable recycling globally to “fix” a memory leak. Find the leak or schedule a recycle.

Common mistakes

Granting Everyone read on the whole site because one subfolder failed.
Giving the app pool write access to the site root “for uploads”; point uploads at one directory.
Running the pool as a domain admin to reach a UNC share.
Using LocalSystem because a vendor installer said so.
Forgetting that a virtual directory uses the parent app’s pool, not its own.

Lab note

The screenshot is from Windows 11 26H2; labpool was created for C:\inetpub\lab on port 8080. Server 2025 uses the same WebAdministration object model, but role installation remains E1.
